LED Street Light
High-efficiency LED street lighting for stable outdoor performance and long-term reliability.
Applications

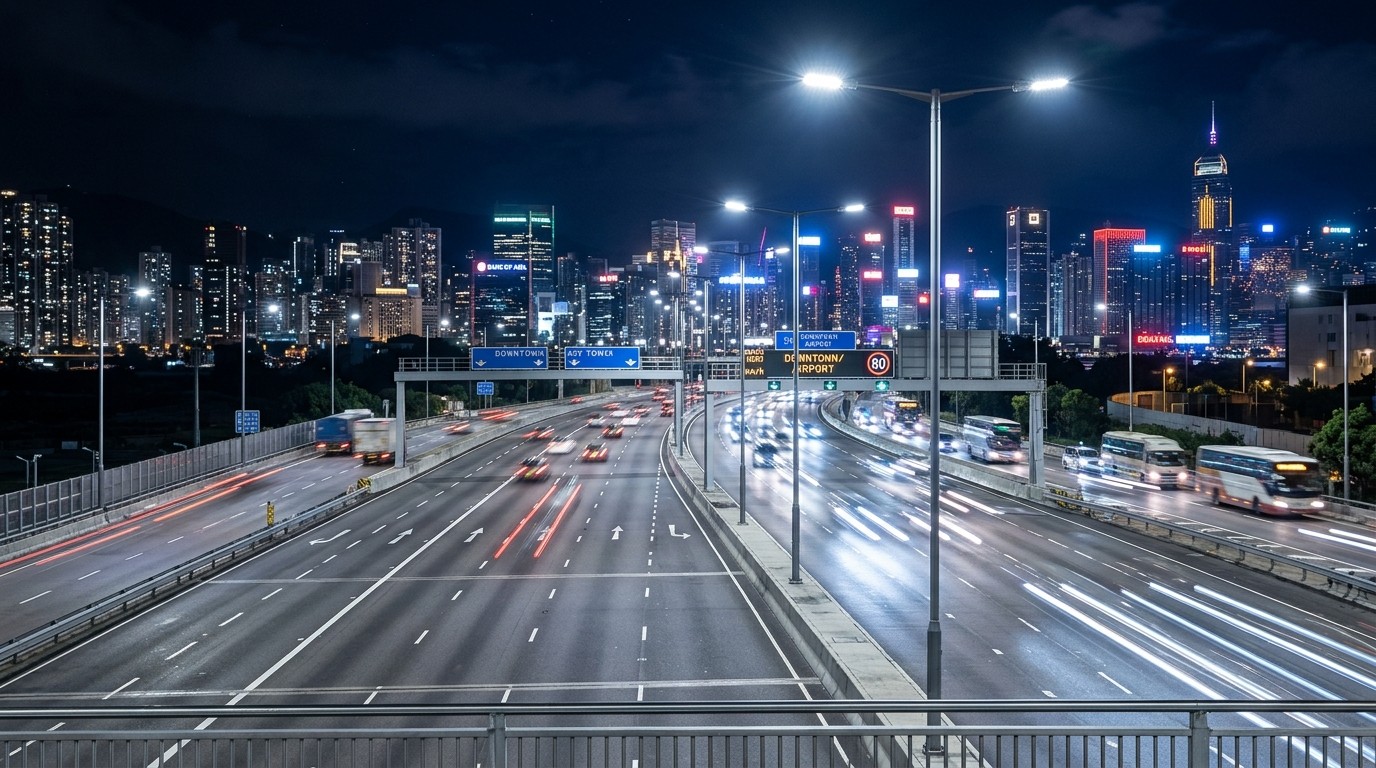

Urban roads and highways

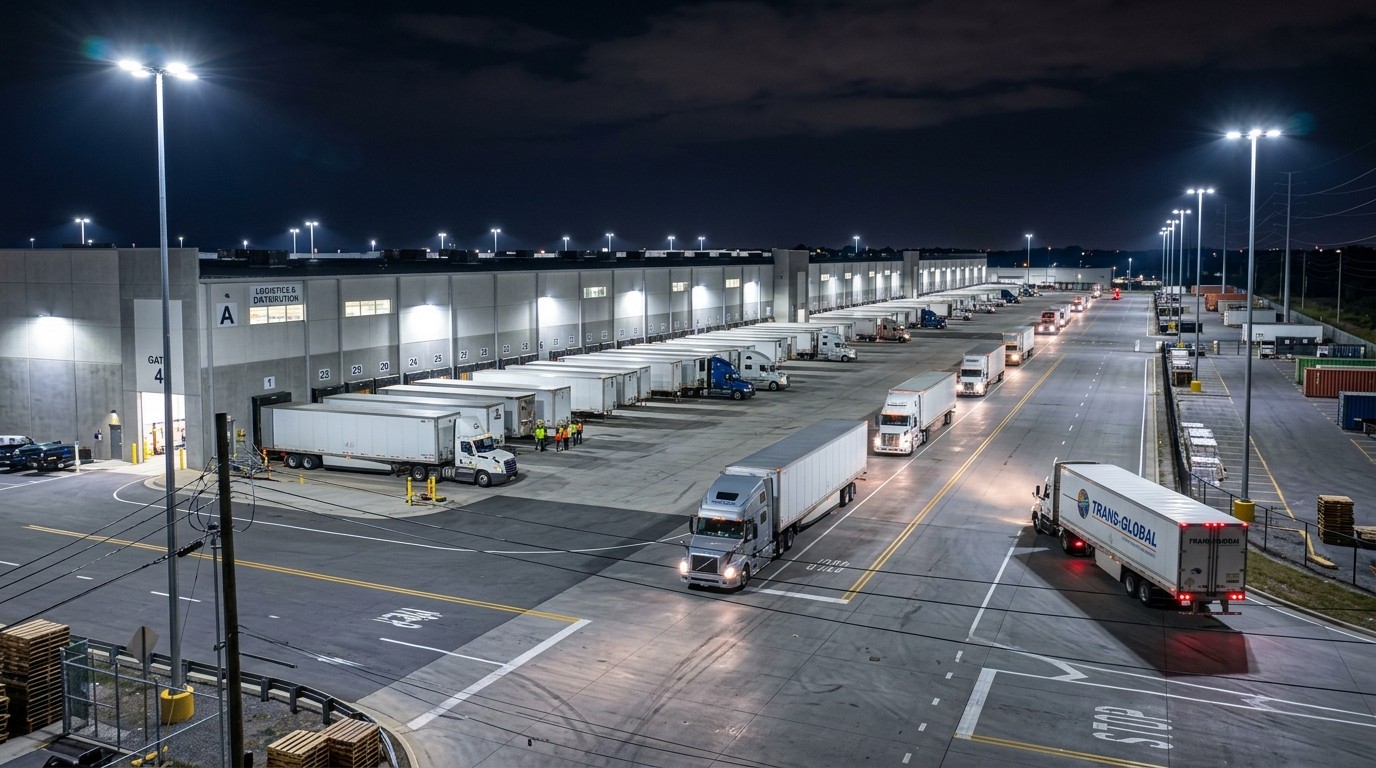

Industrial zones and logistics facilities

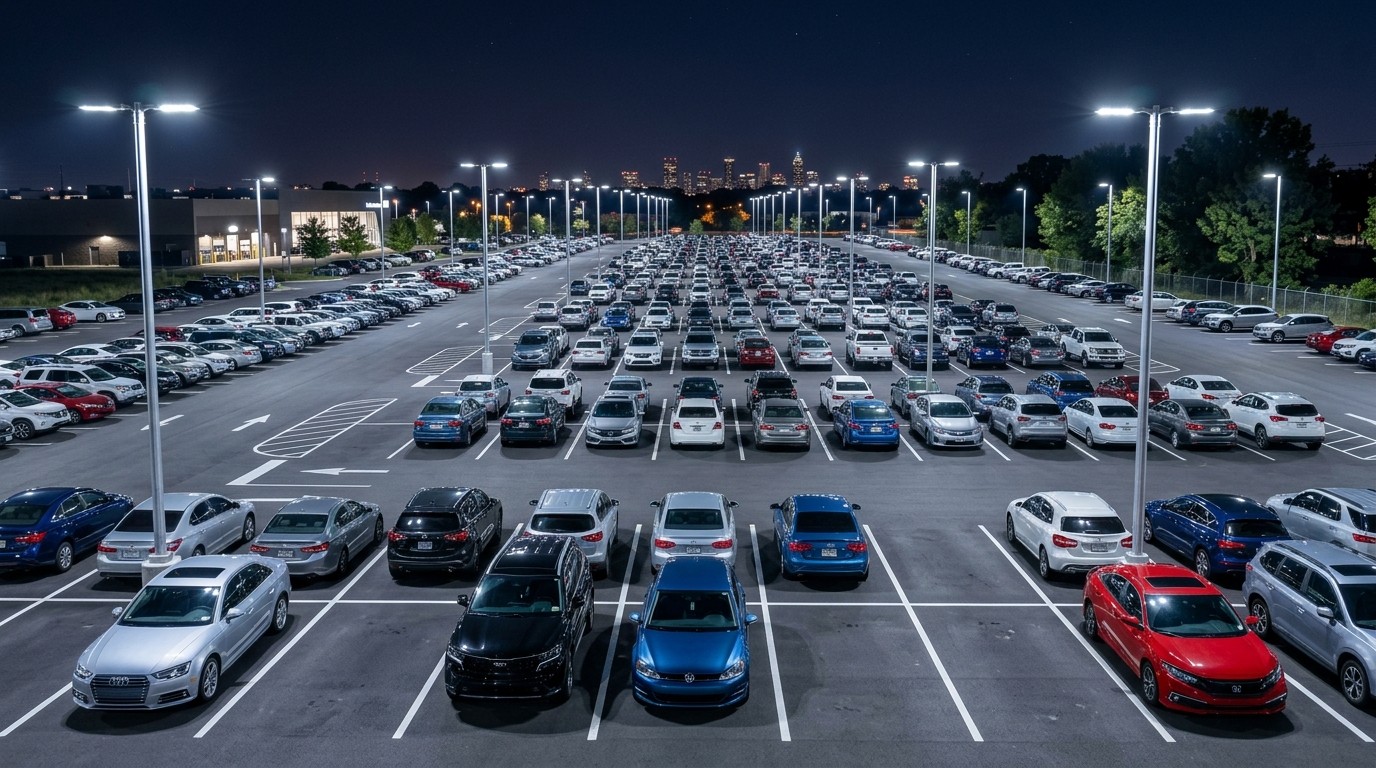

Parking lots and public spaces
Overview
The Luxfine LXST Series is an ultra-slim, high-performance LED street light available from 30 W to 200 W. Designed for roads, highways, and urban infrastructure, it delivers 150 lm/W efficacy with a 50,000-hour lifespan. Two series are available — the LS and LK — to suit different installation requirements.
Key Features
Feature | Description |
|---|---|
High efficacy | 150 lm/W — optimized energy efficiency for outdoor lighting |
Wide wattage range | 30 W to 200 W, adjustable to suit different road widths and layouts |
Multiple beam options | Type II / III / IV beam angle for flexible installation |
Durable & weather-resistant | IP66 driver / IP68, operating range −40°C to +45°C |
Surge protection | 6 kV line-line / 20 kV line-earth |
Long lifespan | 50,000 hrs L70 @ 25°C, 5-year warranty |
IoT ready | Optional 1–10V dimming and photocell for smart city integration |

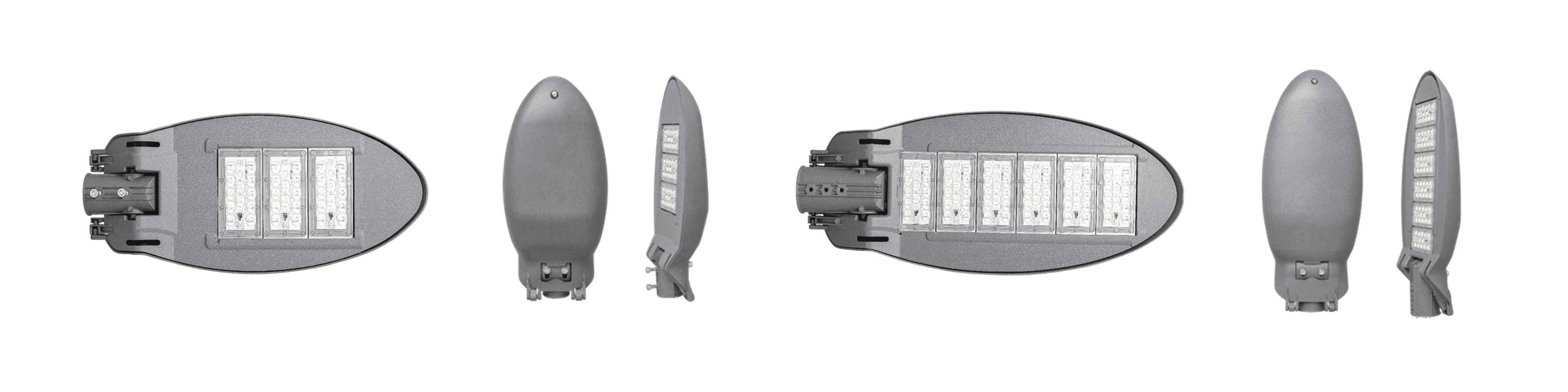

LXST-LS Series
Model Lineup
Model | Wattage | Lumens | Mounting Pipe | Net Weight |
|---|---|---|---|---|
LXST-30/40LS | 30 / 40 W | 4,200 / 5,600 lm | 45 mm | 2.65 kg |
LXST-60LS | 60 W | 9,000 lm | 45 mm | 3.62 kg |
LXST-100LS | 100 W | 15,000 lm | 60 mm | 4.43 kg |
LXST-150LS | 150 W | 22,500 lm | 60 mm | 4.92 kg |
LXST-200LS | 200 W | 30,000 lm | 60 mm | 6.00 kg |

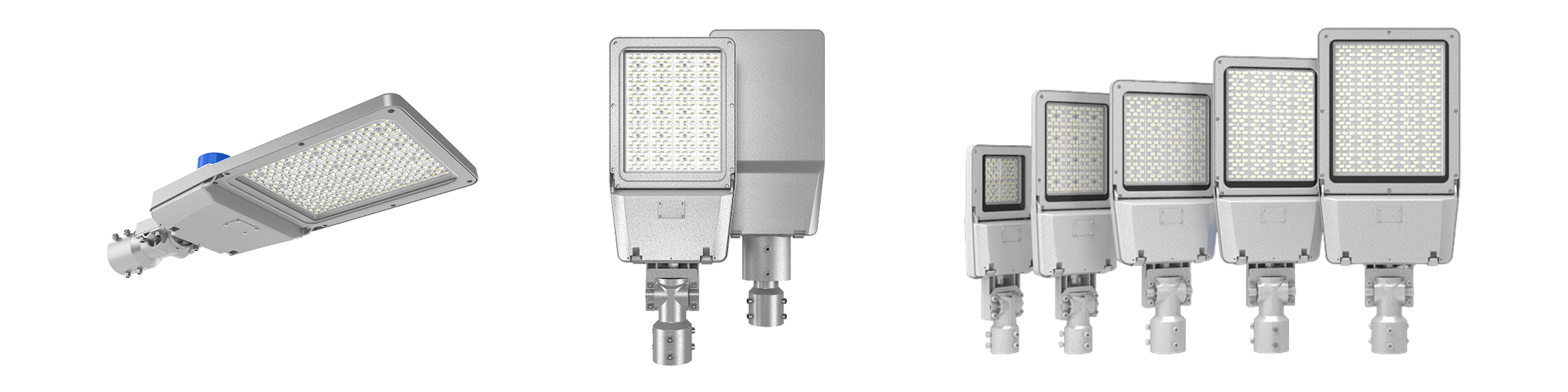

LXST-LK Series
Model Lineup
Model | Wattage | Lumens | Mounting Pipe | Net Weight |
|---|---|---|---|---|
LXST-30/40LK | 30 / 40 W | 4,200 / 5,600 lm | 42 or 60 mm | 4.24 kg |
LXST-60LK | 60 W | 9,000 lm | 42 or 60 mm | 4.58 kg |
LXST-100LK | 100 W | 15,000 lm | 42 or 60 mm | 5.44 kg |
LXST-150LK | 150 W | 22,500 lm | 42 or 60 mm | 5.61 kg |
LXST-200LK | 200 W | 30,000 lm | 42 or 60 mm | 6.20 kg |

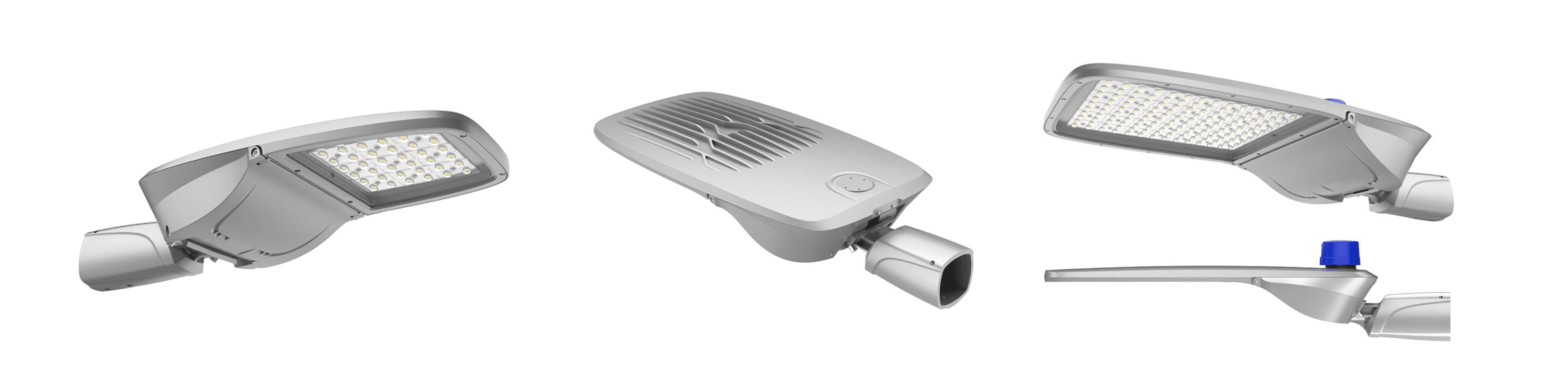

LXST-K Series
Model Lineup
Model | Wattage | Lumens | Efficacy | Mounting Pipe | Net/Gross Weight |
|---|---|---|---|---|---|
LXST-30K | 30 W | 5,400 lm | 170–180 lm/W | 45 mm | 3.2 / 4.1 kg |
LXST-50K | 50 W | 9,000 lm | 170–180 lm/W | 45 mm | 3.2 / 4.1 kg |
LXST-75K | 75 W | 13,500 lm | 170–180 lm/W | 45 mm | 3.2 / 4.1 kg |
LXST-100K | 100 W | 18,000 lm | 170–180 lm/W | 60 mm | 4.5 / 5.5 kg |
LXST-125K | 125 W | 22,500 lm | 170–180 lm/W | 60 mm | 4.5 / 5.5 kg |
LXST-150K | 150 W | 27,000 lm | 170–180 lm/W | 60 mm | 4.5 / 5.5 kg |

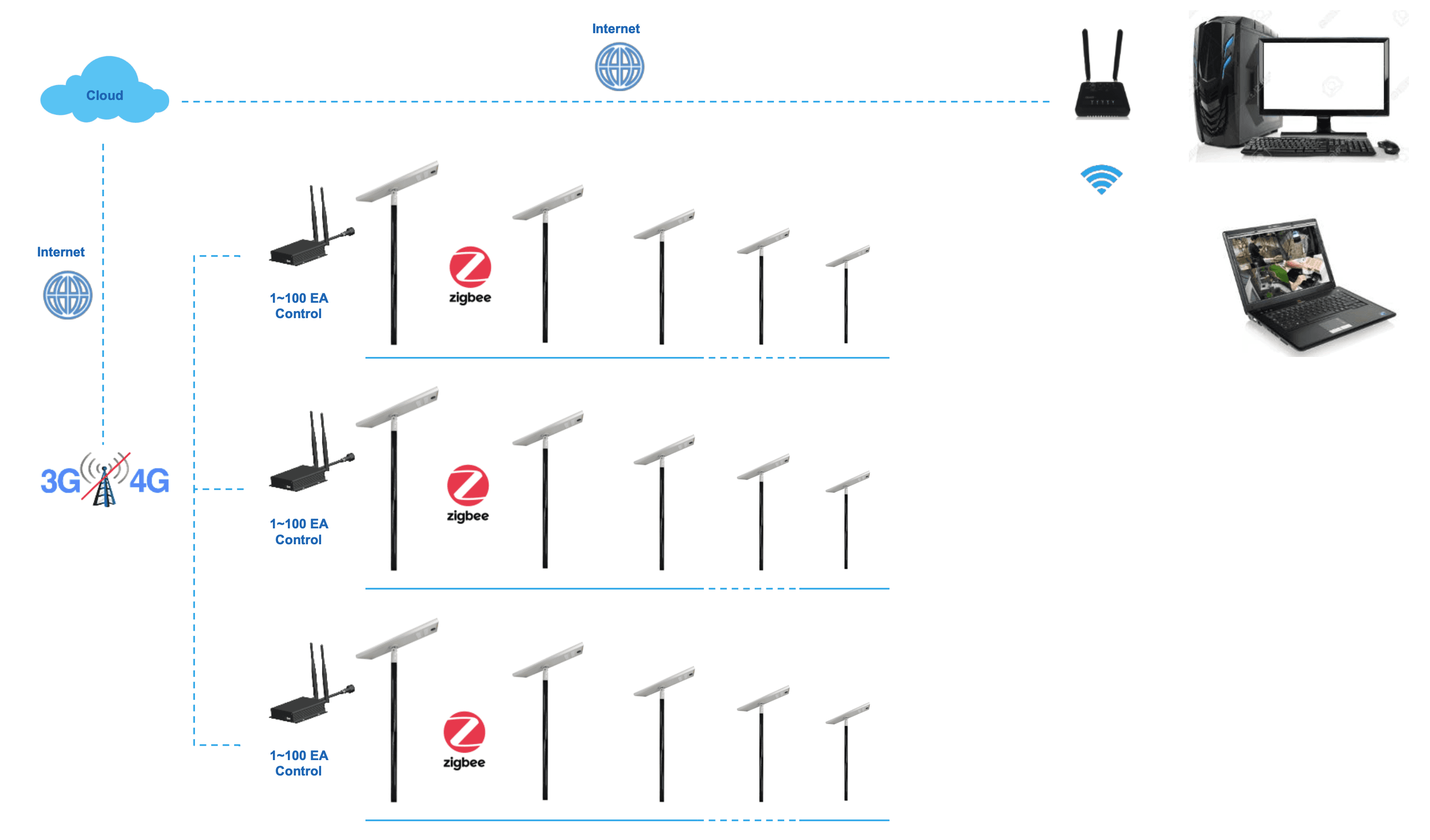

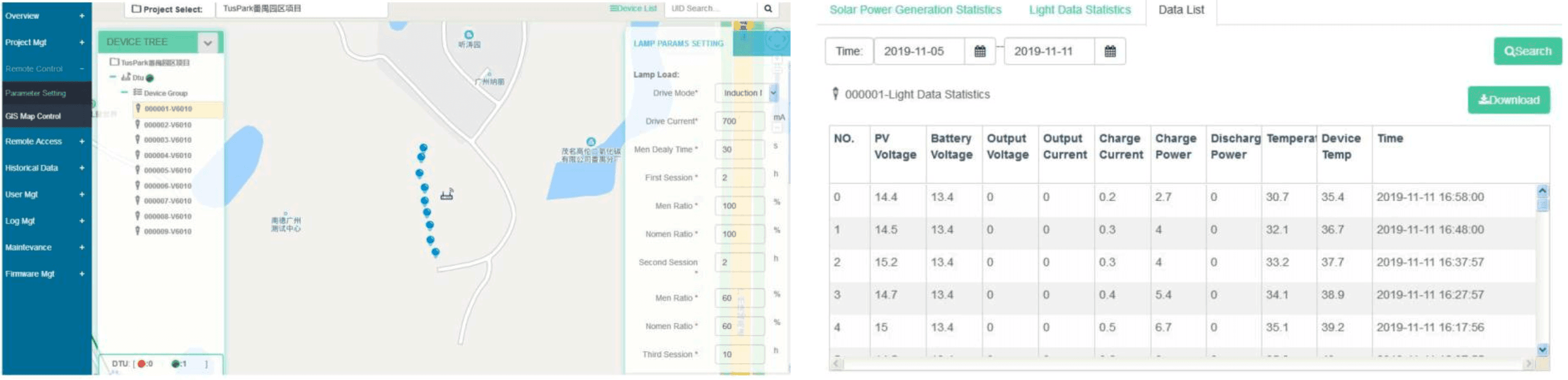

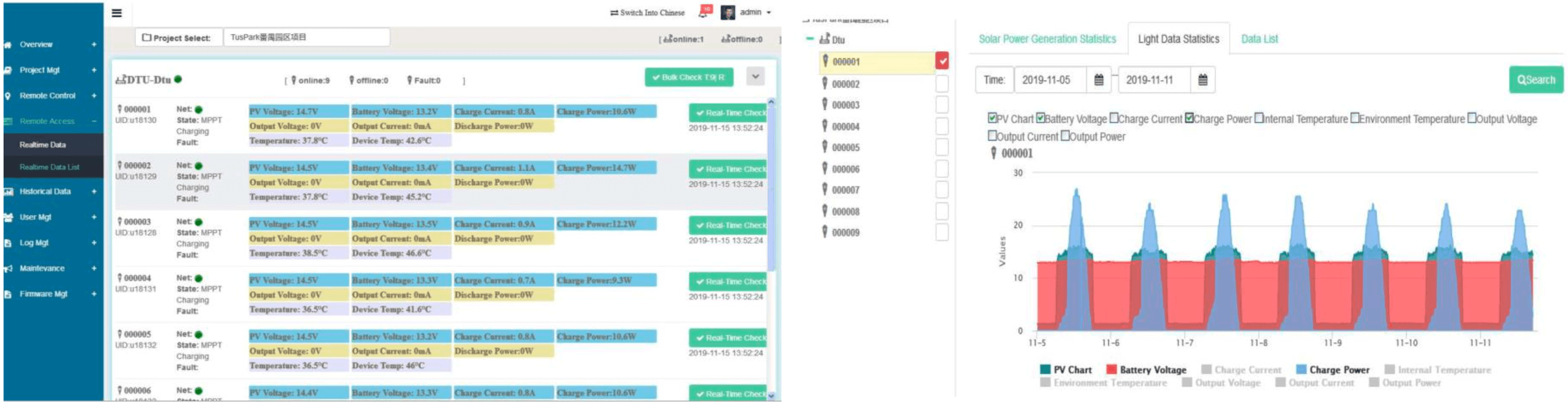

IoT Smart Control System
The LXST Series supports an IoT-based central control system, enabling remote monitoring, fault alerts, and dimming control for groups of 1 to 100 units via cloud.
